Downstream Mobile Shredding Systems

Ferrous & Non-Ferrous Metal Shredding Equipment

RECON

MOBILE FERROUS SEPARATION SYSTEM

The Recon combines multiple separation technologies that together provide high capture rates and excellent cleanliness of ferrous scrap. Shredded, liberated scrap enters the machine and is first met with an air knife and cyclone removing light fluff. It then passes under a permanent magnet drum which separates the ferrous metals from the “all other” (non-ferrous + waste fraction). Ferrous scrap enters the 4-man picking station for further cleaning and then out on to the ferrous stacking conveyor. The “all other” fraction is taken away to the Eddy Current Separator (ECS60) for further processing.

FEATURES:

  • Single Drum Permanent Magnet: 48” (1200 mm) diameter X 48” (1200 mm) long
  • Picking Station: 4 man
  • CAT XQ 125KW Generator Set
  • Allen Bradley Controls that interface with Bravo and Mobile ECS
  • Two (2) 20’ (6.1 m) ferrous and non-ferrous conveyors included as part of assembly
  • All mounted on a track chassis

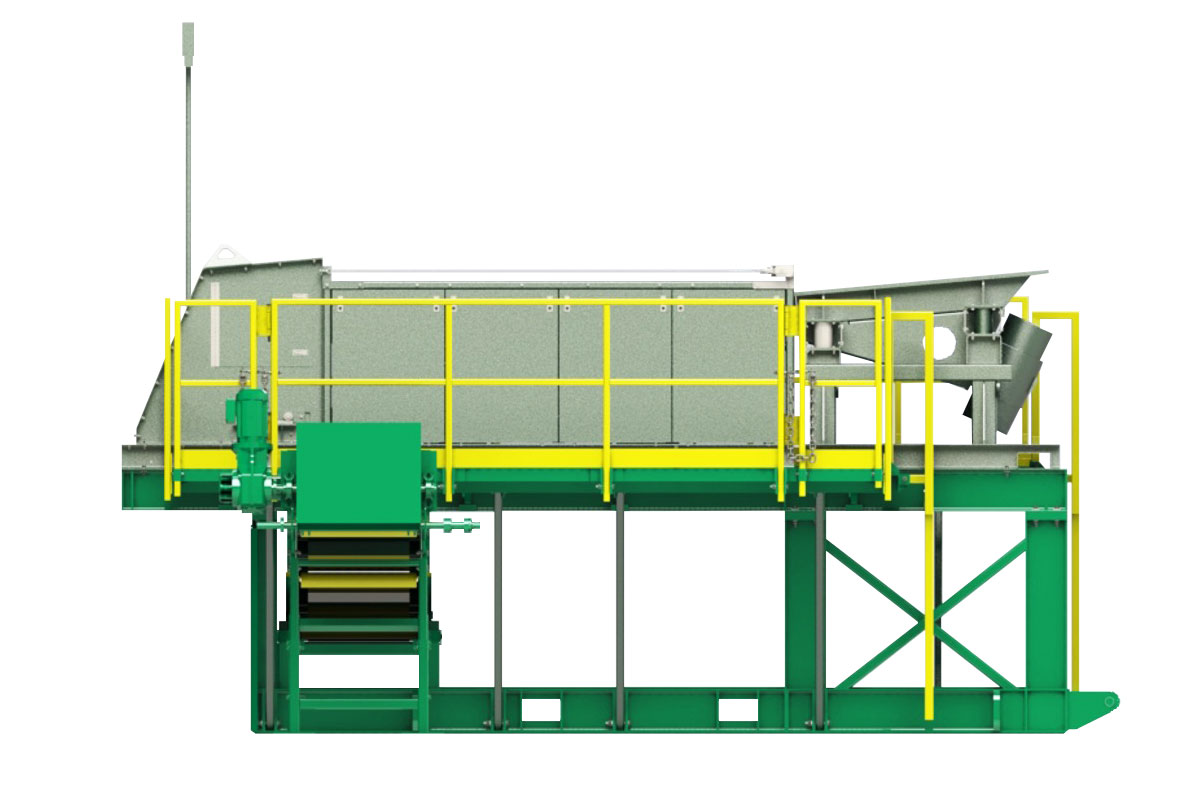

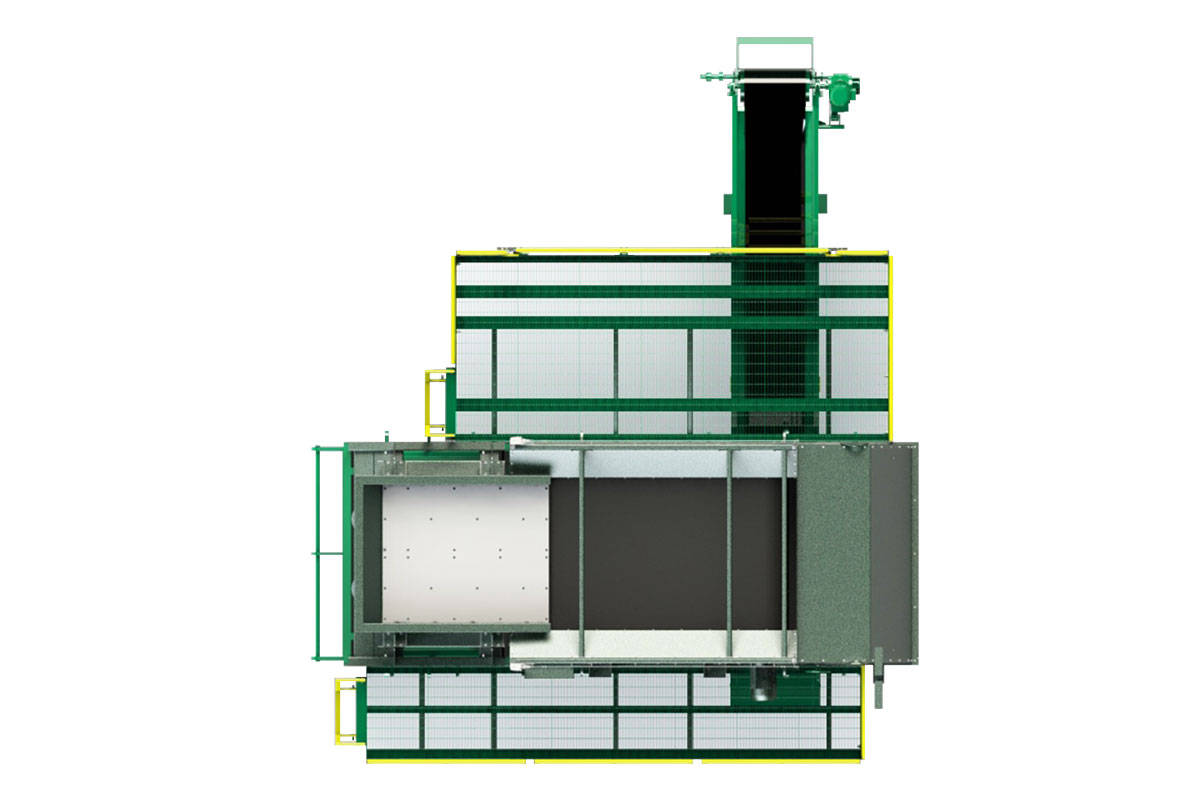

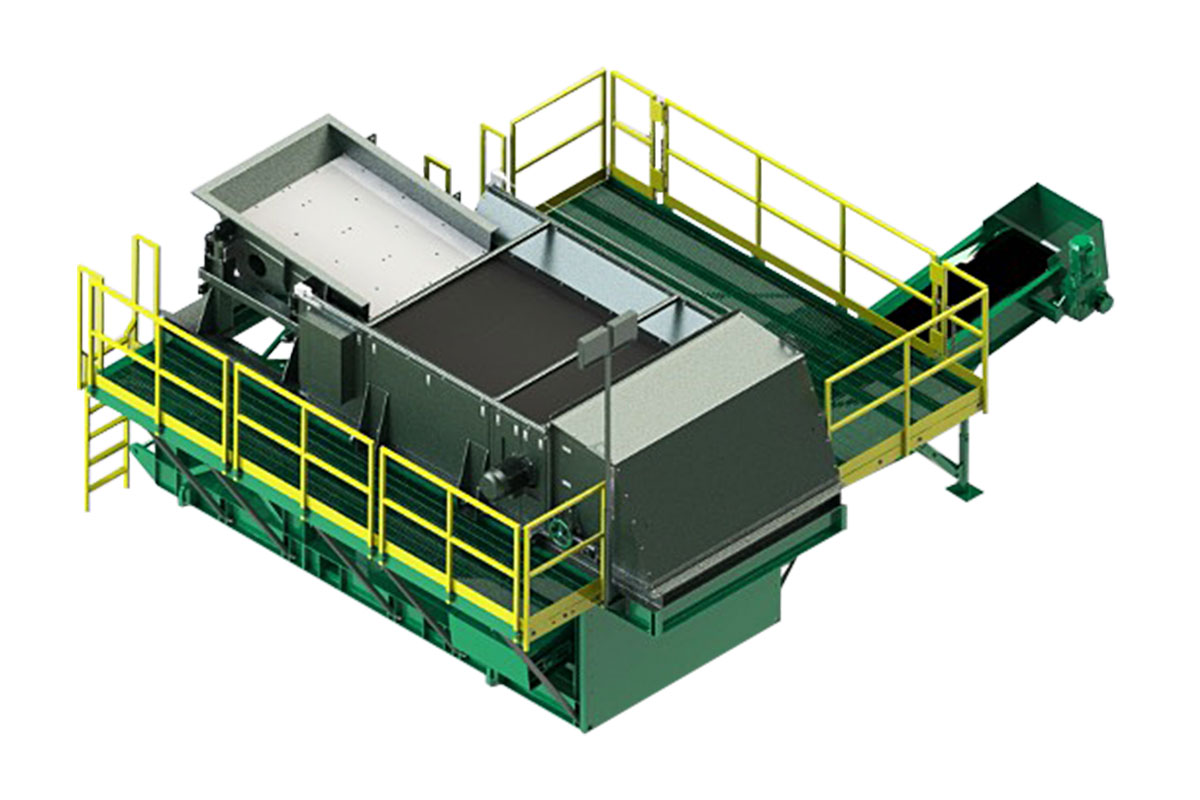

EAGLE REAPER

MOBILE EDDY CURRENT SEPARATOR

The Eagle Reaper is a mobile metal separation unit and the ideal partner to the Recon. Features include a takeaway conveyor for processed materials, a 60” Eddy Current separator for non-ferrous recovery, skid platform mounted, and three stockpile configurable conveyors to takeaway processed materials.

FEATURES:

    • 54” (1371.6 mm) wide vibratory feeder
    • 60” (1524 mm) belt system Eddy
    • Dual-sided working platform for easier access for ECS operation and maintenance
    • Quick belt change system (10 mins)
    • Fold down rail to provide more room for belt changes
    • 24” (609.6 mm) wide belt for non-reactive material
    • Telescopic conveyor support legs create a flat-picking belt if needed
    • Skid platform configuration offers compact design and min foundation requirements
    • Horizontal and angle adjustment for the diverter gate
    • Eccentric configuration for the 22-pole rare earth rotor magnet drum
    • Direct drive for simpler maintenance
